Cochlear Processors

  • BAHA 3
  • BAHA 4
  • BAHA 5/BAHA 5 Power
  • BAHA 6
  • Osia
  • Osia 2
  • Kanso
  • Kanso 2

BAHA 3 / BAHA 4

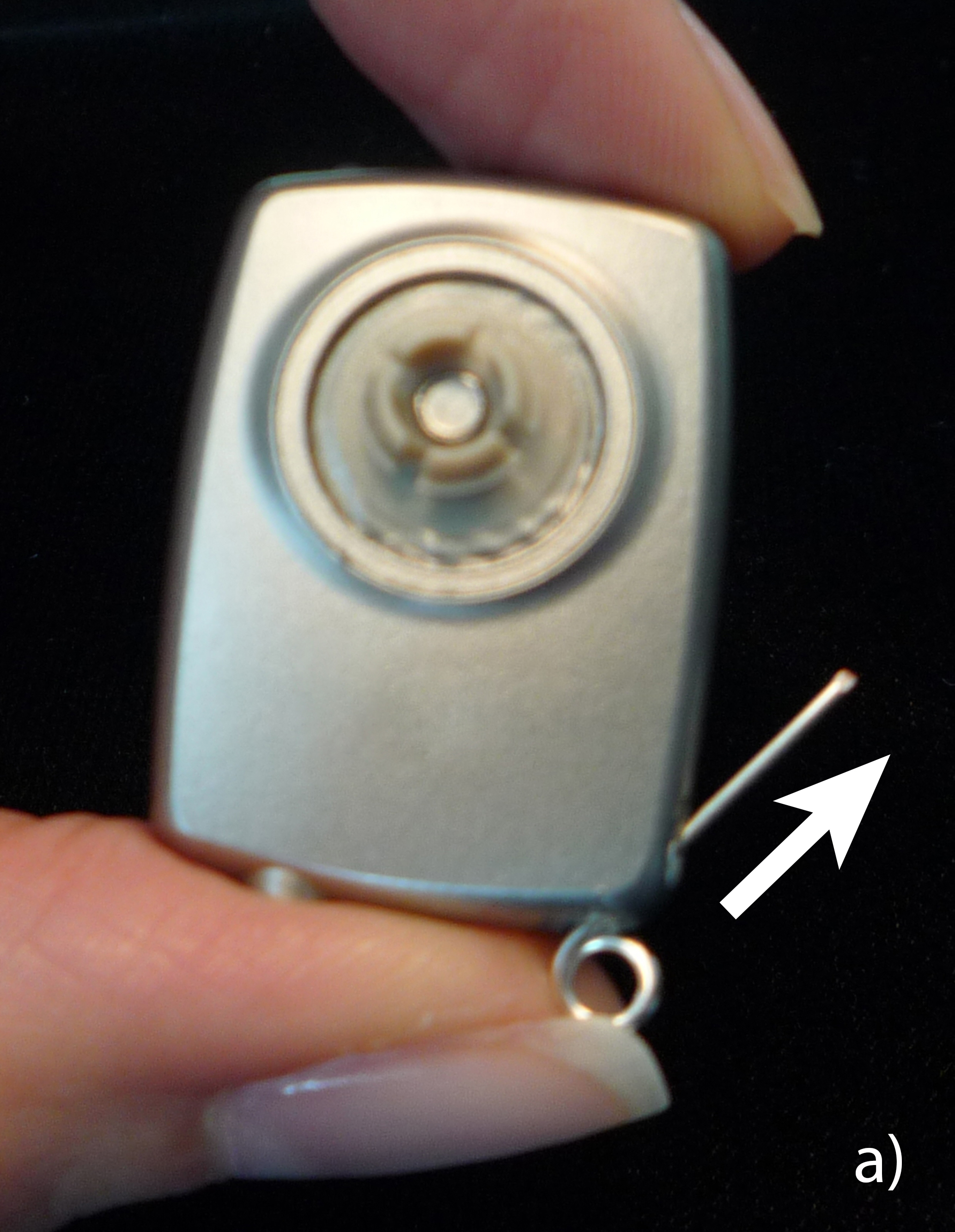

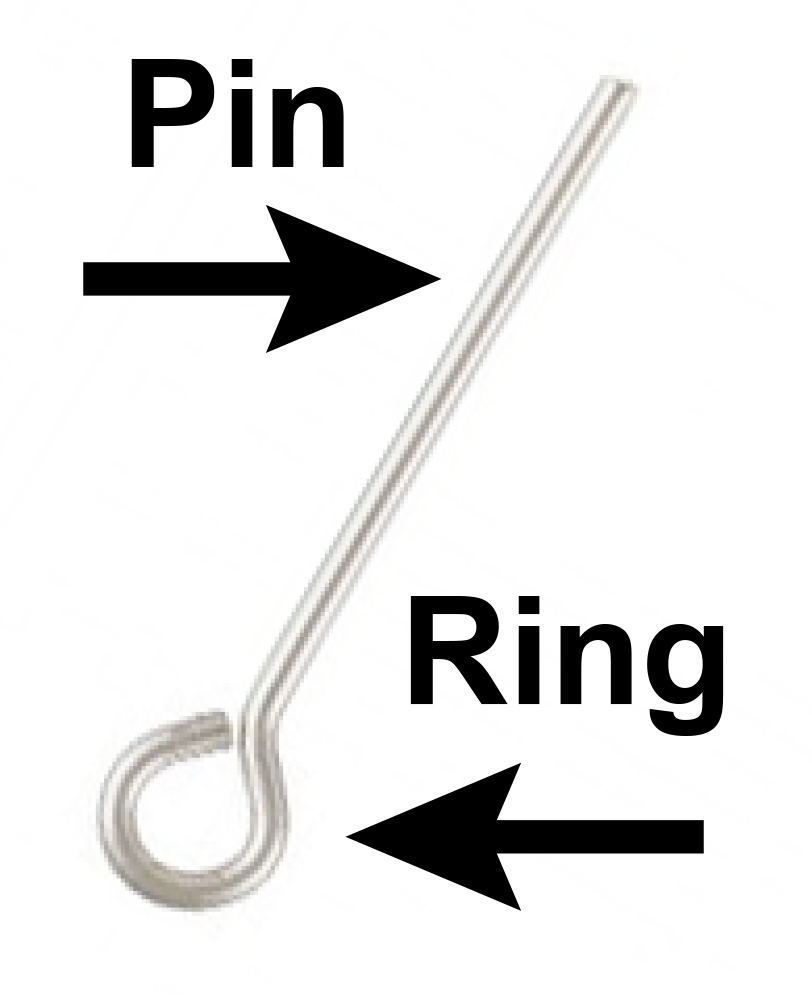

Slide the connector pin UP through the lower hole in the bottom part of the BAHA (a).
Press your thumb against the connector ring and the BAHA to hold it firmly in place (a).

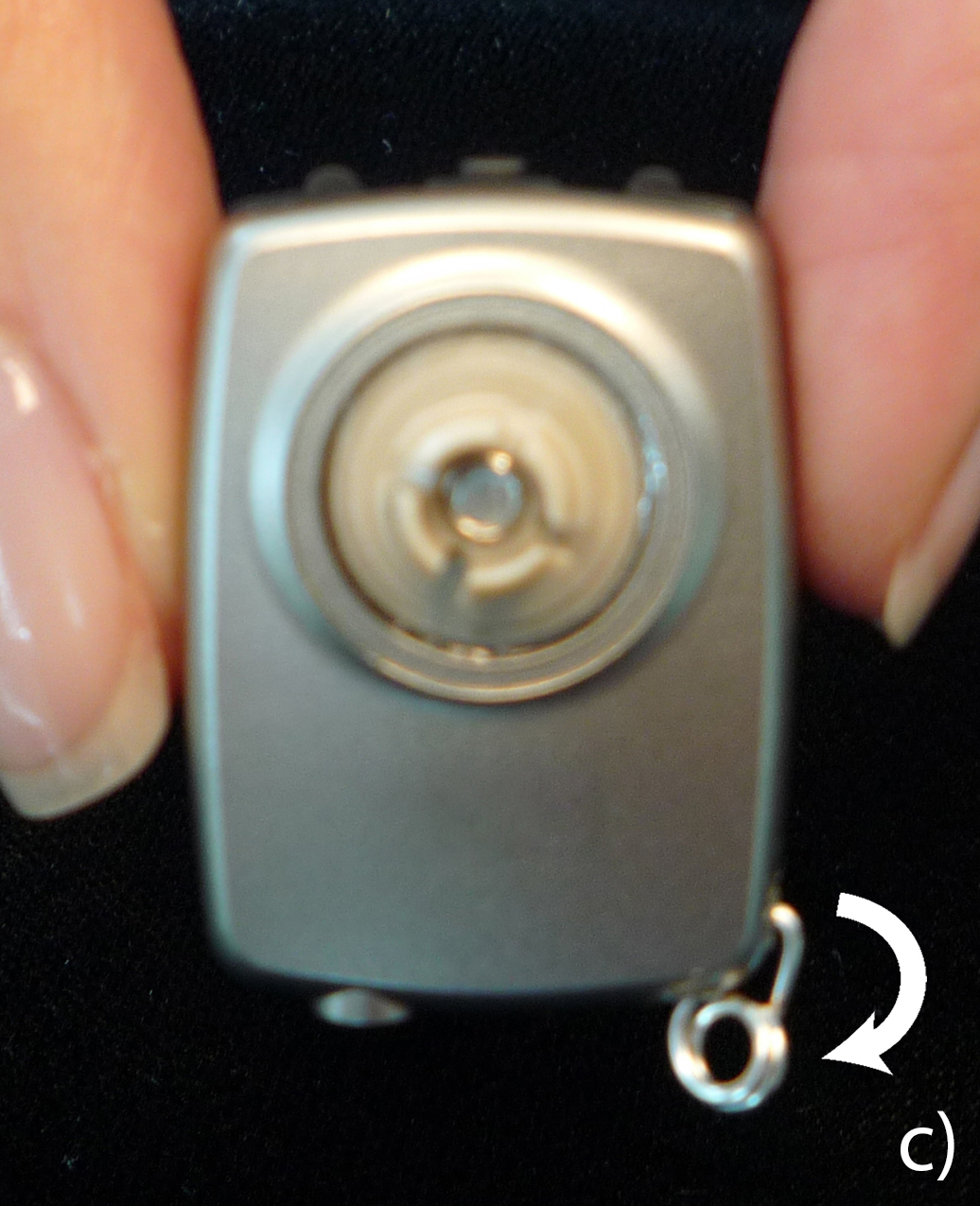

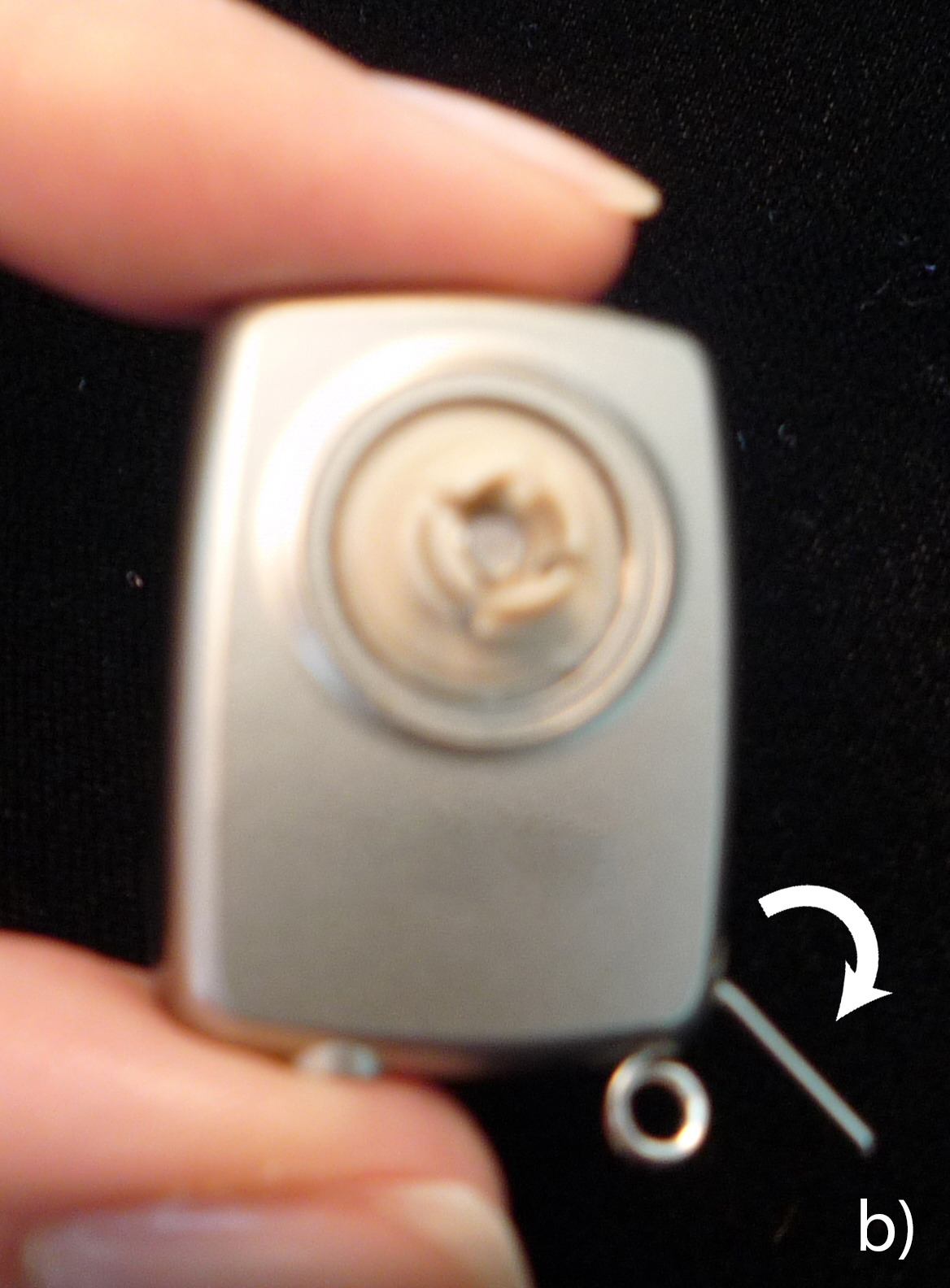

Use your finger or a small pair of pliers to bend the pin end down until it rests in place behind the connector ring (b) & (c).
Trim any excess wire.

 eye-pin-3.jpg    fig-1a.jpg     fig-1b.jpg    fig-1c.jpg

BAHA 5/BAHA 5 Power/BAHA 6
KANSO
OSIA/OSIA 2

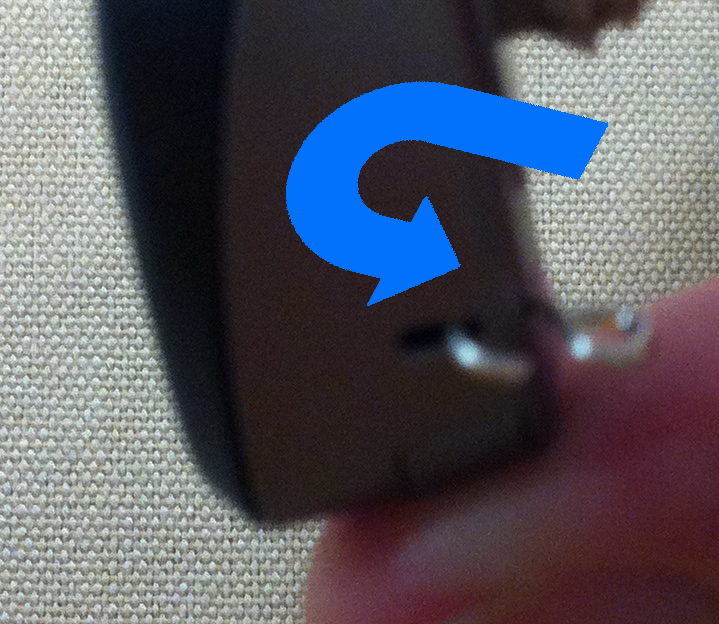

Slide the open S hook end through the safety line hole on the side of the processor. Use a pair of needle nose pliers to close the open S hook end.

s-hook.png    baha5-01.png  baha5-02.png



KANSO 2
Please view this video by Cochlear for attaching the Kanso 2 connector to the processor.
